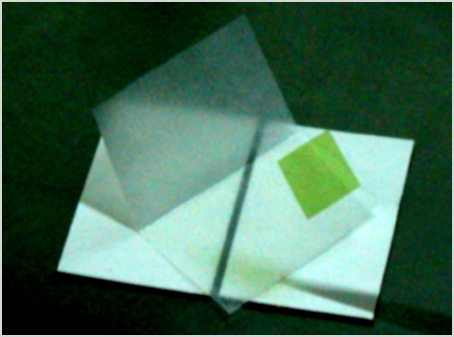

Dye acetate Q-switch foil

RQ model dye acetate foil is a kind of passive Q-switch for small Nd.:YAG pulsed laserheads. Like those manufactured once by KODAK in the past. Comparing other Q- switch, RQ model dye acetate foil has a small volum, light weight,without power etc. It is mainly used for military laser range finder, laser

Ophthalmic treated facility and in science researching. 10-15 nm is typically  pulse widths obtained with this Q-switch

Standard specifications:

Material: Bis (4- dimethylaminodithiobenzil, nickel) in cellulose acetate.

Thickness: 0.10 +/- 0.01 mm

Size: extension from  5 mm x 5 mm to 20 mm x 30 mm

Optical quality: 20 fringes or better per square cm at Sodium D line

Surface quality: Visual inspection whereby no more than one defects per sheet in less than 2% are allowabel.

Power density:  300 MW/cm^2

Work temperature: -45 - 70 ^oC

unstaturated transmission: 10% ~ 70%

Work frequency: < 5 times/second

Packing:  One sheet per box will be hermetically sealed in foil polyethylanpaper packaged between layers of foam-plastic.
